Scan&Paint 2D Sound Localization System
BROAD BAND ACOUSTIC IMAGING WITH UNMATCHED SPATIAL RESOLUTION
Introducing Scan&Paint 2D – the ultimate tool for visualizing time-stationary sound fields with unmatched spatial resolution and full acoustic bandwidth. This powerful system is a must-have for any engineer looking to troubleshoot, soundproof, or benchmark products on the spot. With our cutting-edge PU probe sensing technology, you can complete an entire measurement campaign in just minutes, and see the results in stunning acoustic imaging that shows the exact location of sound origin in low, mid, and high frequencies. Don't settle for mediocre results – upgrade to Scan&Paint 2D today and take your engineering to the next level.
This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.
Product Overview
SOUND LOCALIZATION USING A SINGLE INTENSITY PU PROBE

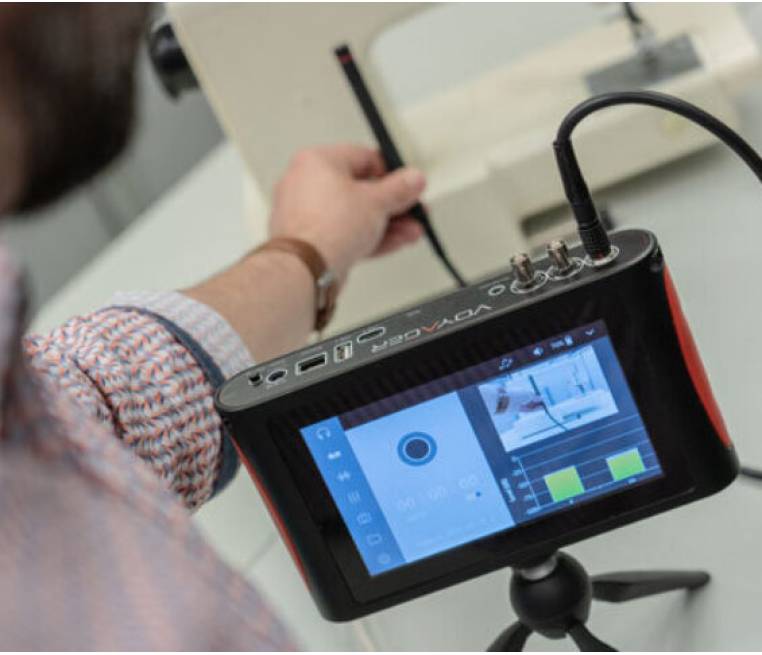

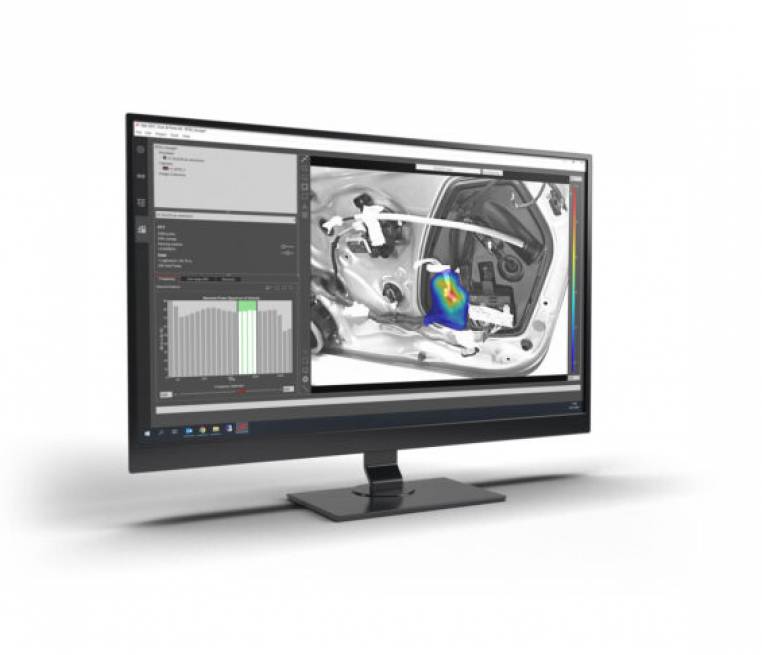

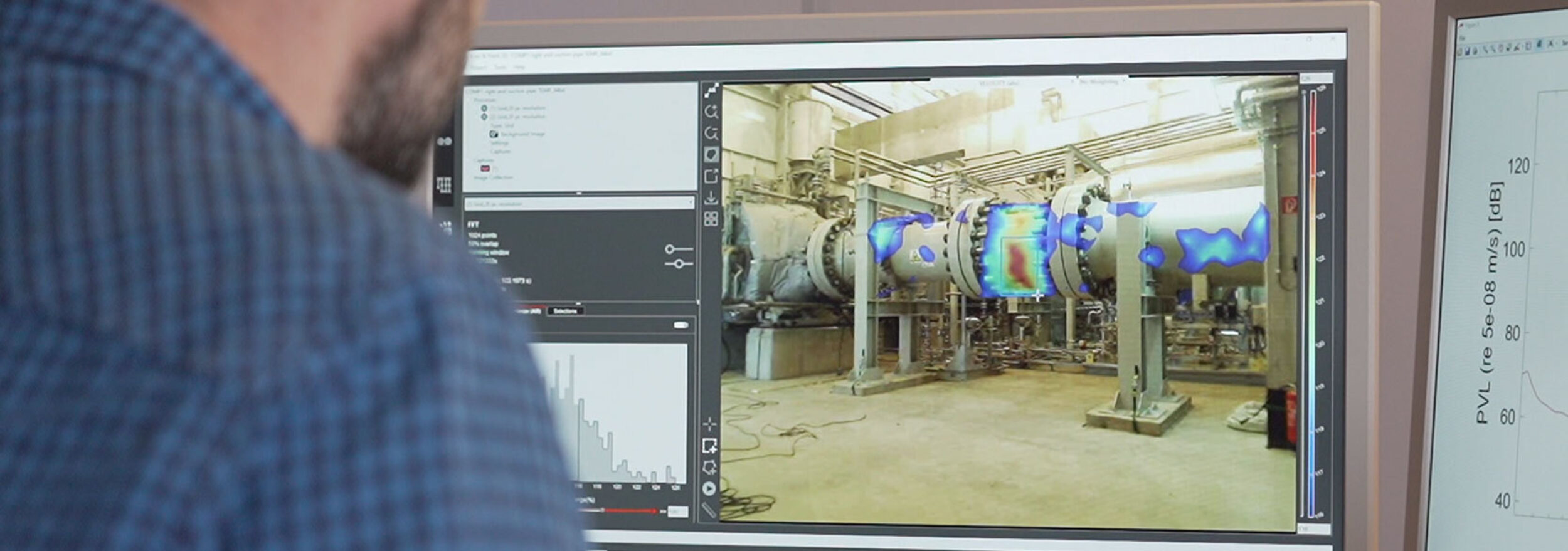

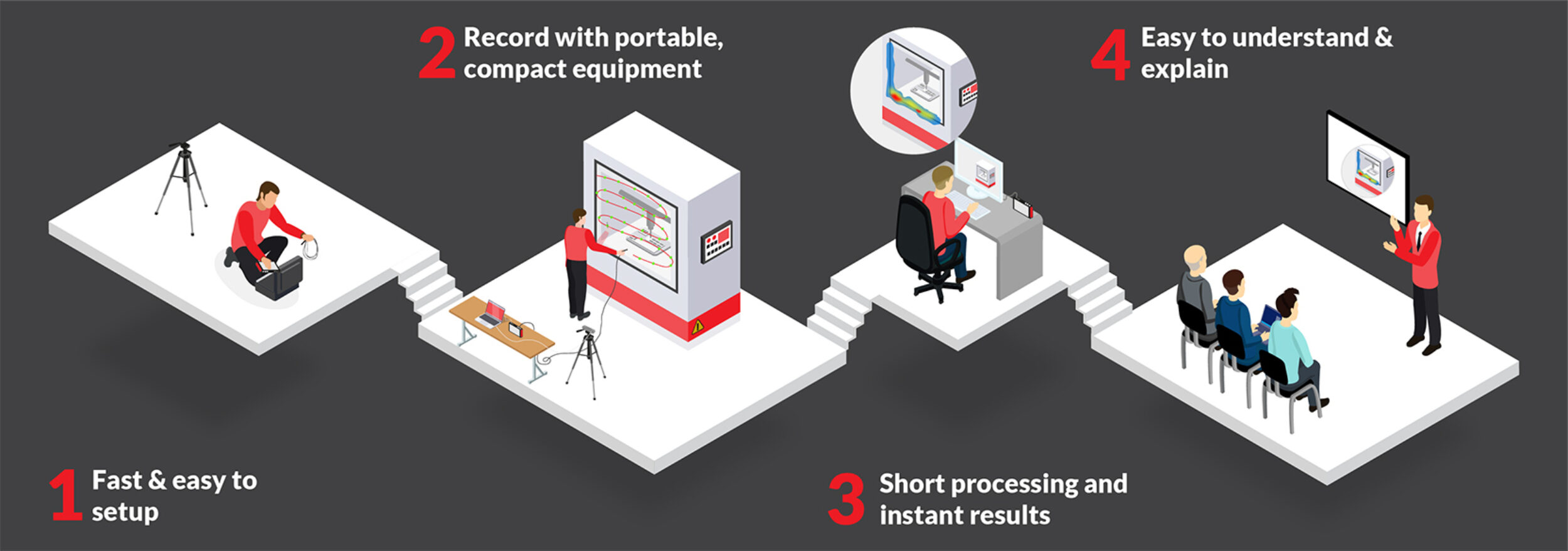

Scan&Paint 2D uses a simple and effective method for measuring time-stationary sound fields. The surface of the object being measured is scanned with a single PU probe, which is simultaneously captured by a camera. The recorded video and probe measurement data are automatically synchronized while the positions of the probe are extracted using live IR-LED tracking. This information is then used to produce acoustic imaging, which shows the origin of noise on the object. Our unique probe sensing technology allows us to achieve high-resolution imaging with a wide range of frequencies, even in challenging environments.
REAL-TIME PROBE POSITION TRACKING
Getting you faster to your results, that's what our new real-time tracking feature offers you. Our revamped Scan&Paint 2D includes state of the art technology: a new generation PU probe, and a revolutionary camera. The PU Regular GEN2 has two integrated IR LEDs that are invisible to the naked eye. When used in combination with our advanced camera, these LEDs enable real-time tracking of the probe's position as it moves across the surface of the object being measured. Saving you valuable time, and allowing you to convert data into sound maps with a single click.

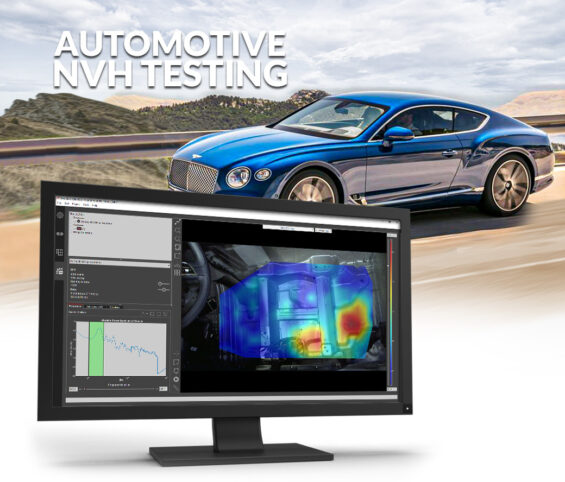

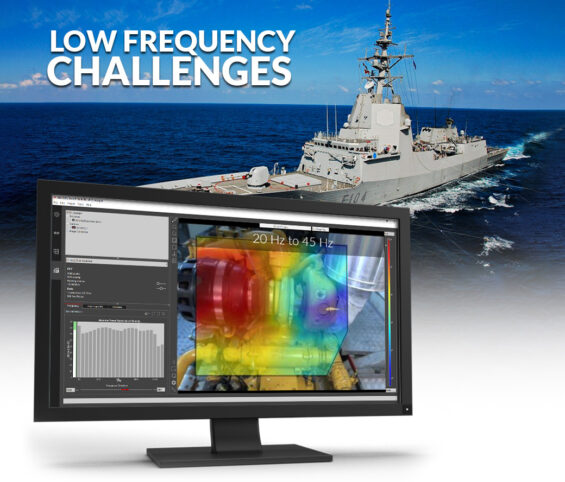

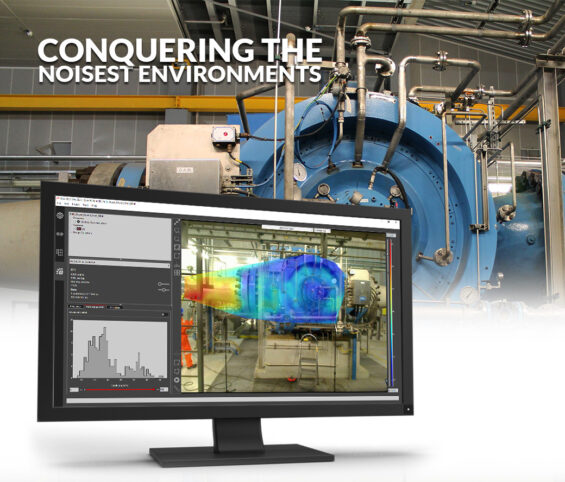

Capturing particle velocity directly enables measuring in acoustically challenging conditions, such as office spaces, workshops, or even industrial facilities. Perform sound source localization, regardless of the size of the source or its operating environment. In addition, sound intensity becomes as straightforward as it can be, simply by taking the time-averaged cross-spectrum of the two measurable quantities, the particle velocity, and the sound pressure. Scan&Paint 2D obtains broad-band sound intensity results that are not affected by the p/I index, maximizing the versatility of the solution. Our advanced camera's depth technology automatically connects sound intensity to dimensions, providing direct measurements of sound power. Preserve the relative phase of the measured particle velocity distribution by adding an additional reference sensor. Sound localization & mapping, sound ranking, sound intensity & power, and ODS, our versatile Scan&Paint 2D covers it all.
VERSATILE AND SCALABLE, READY TO TAKE ON ANY CHALLENGE

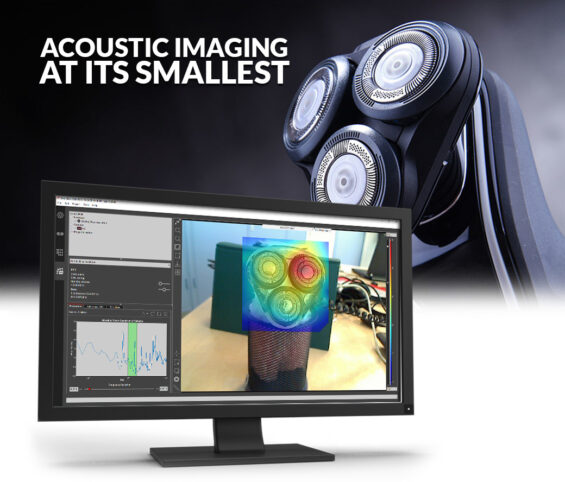

Scan&Paint 2D has a proven track of its versatility by being applied in different applications and markets. From small hearing aids to large gas turbines, size does not matter, Scan&Paint 2D has the answers. For over a decade, Microflown and Scan&Paint 2D have been putting particle velocity on the (sound)map. The numerous product evolutions are making the tool more powerful than ever before!
Product Features
- Broadband Solution: 20Hz - 14kHz
- Real-time probe position tracking
- Fast & Easy, results in minutes
- Applicable in operating environments
- Sound Power calculation
- Reference sensor for phase correlation and ODS
- Portable, single-sensor solution
- High-resolution acoustic imaging of: Particle Velocity, Sound Intensity, Sound Pressure
